AX Mini Proximity Reader

AX Mini Proximity Reader Features


  • Proximity 125KHz
  • Weatherproof IP68
  • Wiegand output
  • Magstripe output
  • Optional tamper
  • Standard 50 bit Wiegand output
  • Optional card formats: Wiegand 26 bit, Wiegand 30 bit, Wiegand 34 bit, Wiegand 44 bit no parity, Magstripe 16 bit, Magstripe 32 bit, 34 bit EM and 26 bit Hitag, 14 Digit Magstripe
  • 2 metre cable (included) extendable up to 50 metres
  • 2 Blue & 1 Tri-colour LED
  • Buzzer
  • Audio/Visual feedback

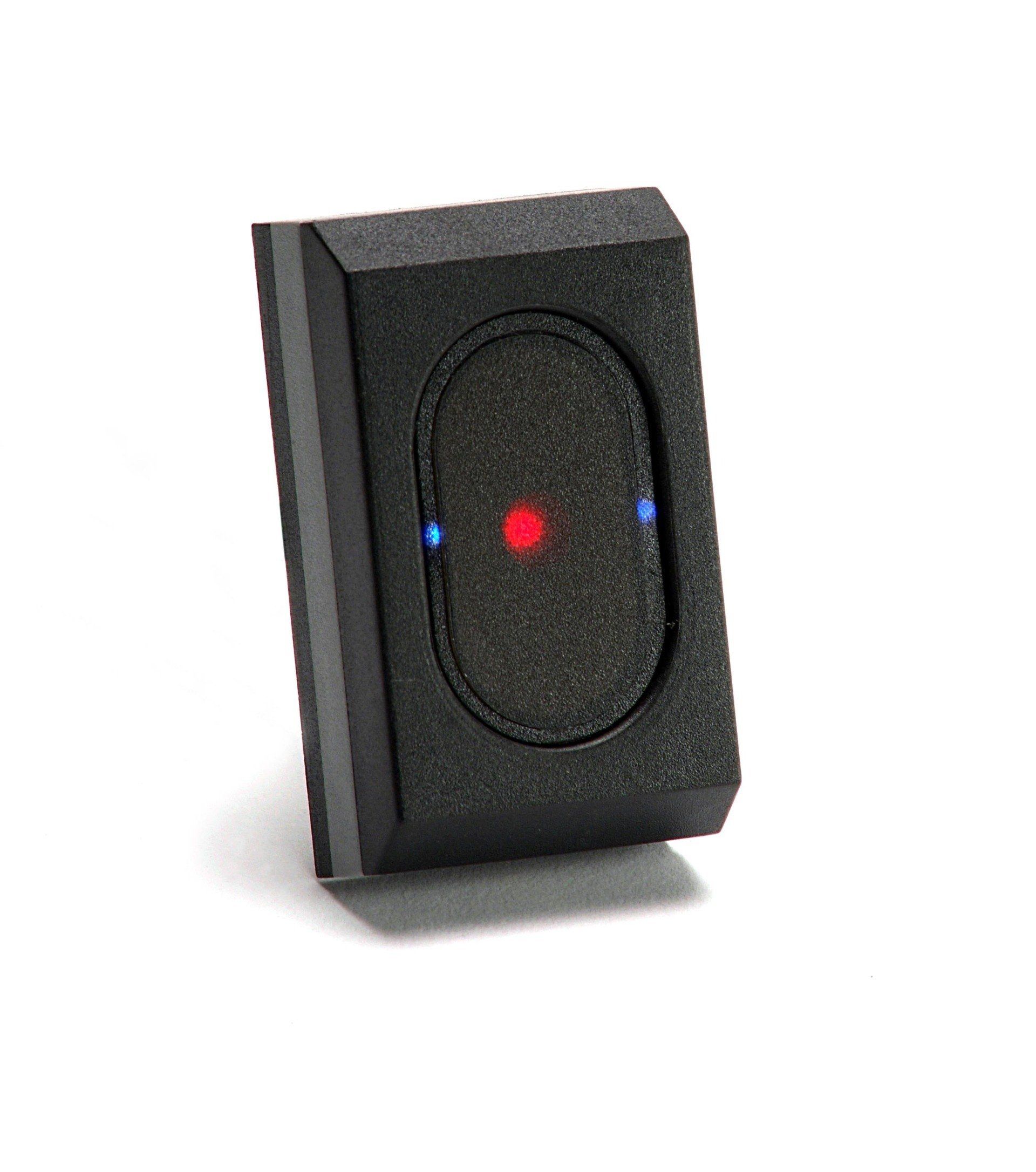

The mullion mount compact proximity reader is designed to fit most door mullion and architrave profiles. The reader combines the user-friendliness of proximity reading in a small unobtrusive design.

The mini proximity reader offers high reliability, consistent read range and low power consumption. The reader also have the advantage of audio-visual feedback when a card or tag is read.


Part No. 105-274
