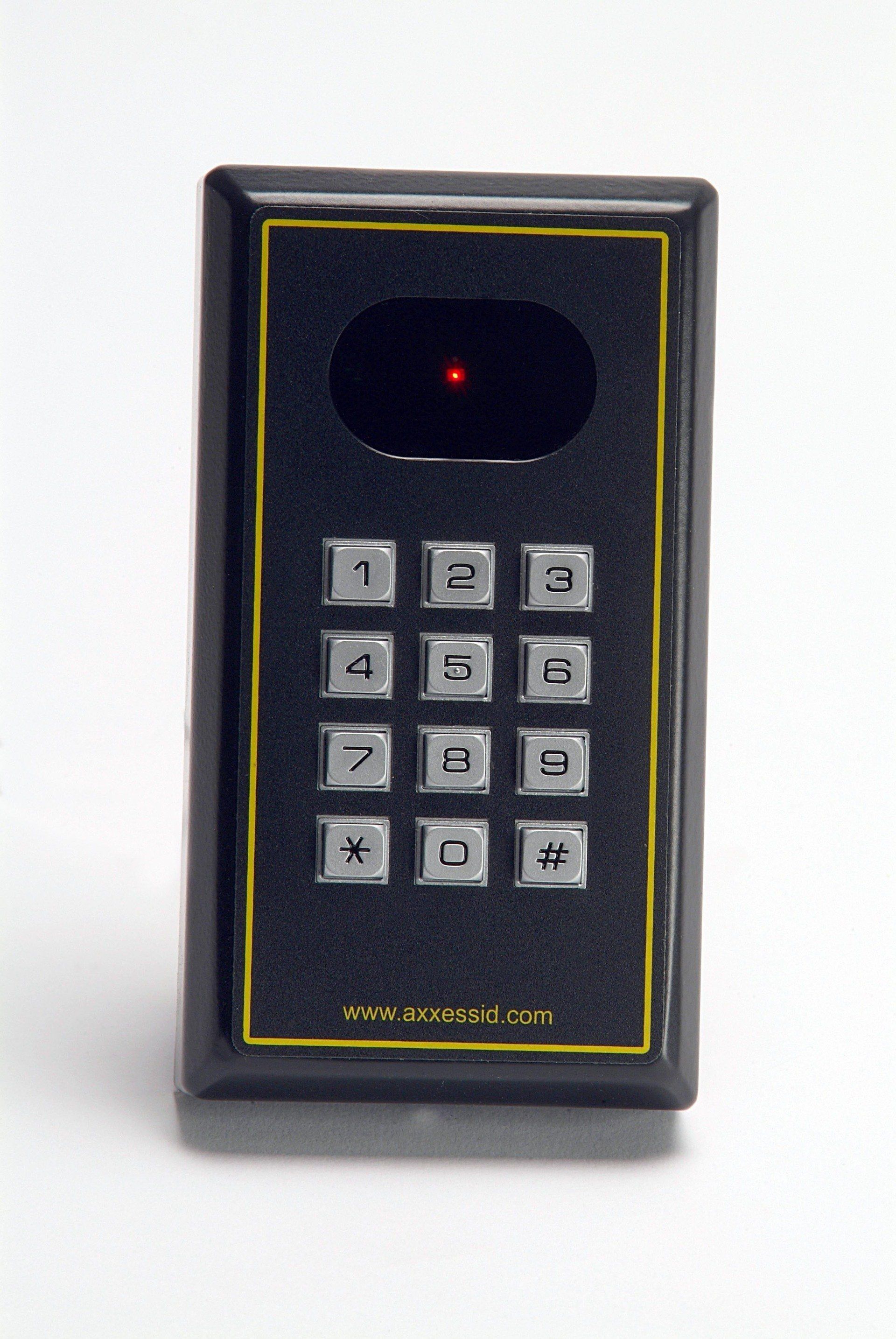

AXK60

The AXK60 is a weatherproof, multi function, standalone pincode system. It is easy to use with pre-defined templates for a range of applications.

Technical Data

PIN Code capacity: up to 60 (between 2 and 8 digits)

Operating temperature: -20 to +65°C

IP rating: 54

Electrical voltage current: 12vDC

Power consumption: 65 mA

Maximum load over relay contacts: 5A 14VDC

Dimensions W x H x D: 60 x 115 x 30mm (2.36 x 4.53 x 1.18")

Part No. 105-271
