Double Pole Green Resettable Breakglass

Double Pole Green Resettable Breakglass

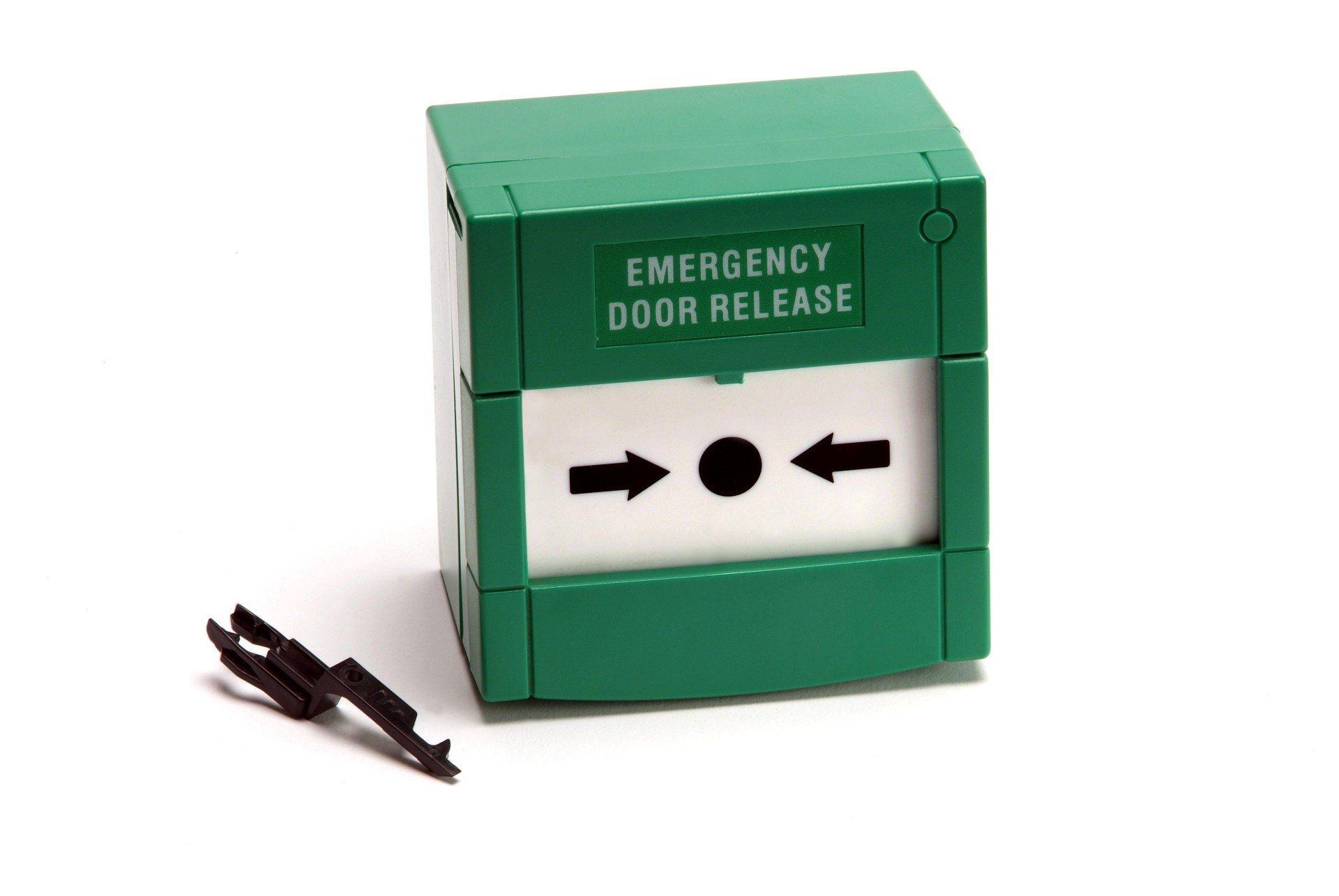

• Surface mount, green breakglass (call point) marked Emergency Door Release, required for all emergency exits where access control locks are installed.
• An optional hinged cover can be fitted on the front of the unit, ensuring that the emergency door release cannot be activated accidently.

Installation of the unit has been made simpler with the internal slide-fit wiring terminals.

When the window is pressed it slides down activating the call point switch resulting in the door lock being released. Included in the pack is the special test key which allows the window to be returned to its original position thus resetting the call point.

The double pole resettable breakglass interrupts both lines of supply for fail safe locks.

Part No. 999-020
Hinged Cover: 999-021

Click here for additional information
