Protocol Converter

Protocol Converter Features

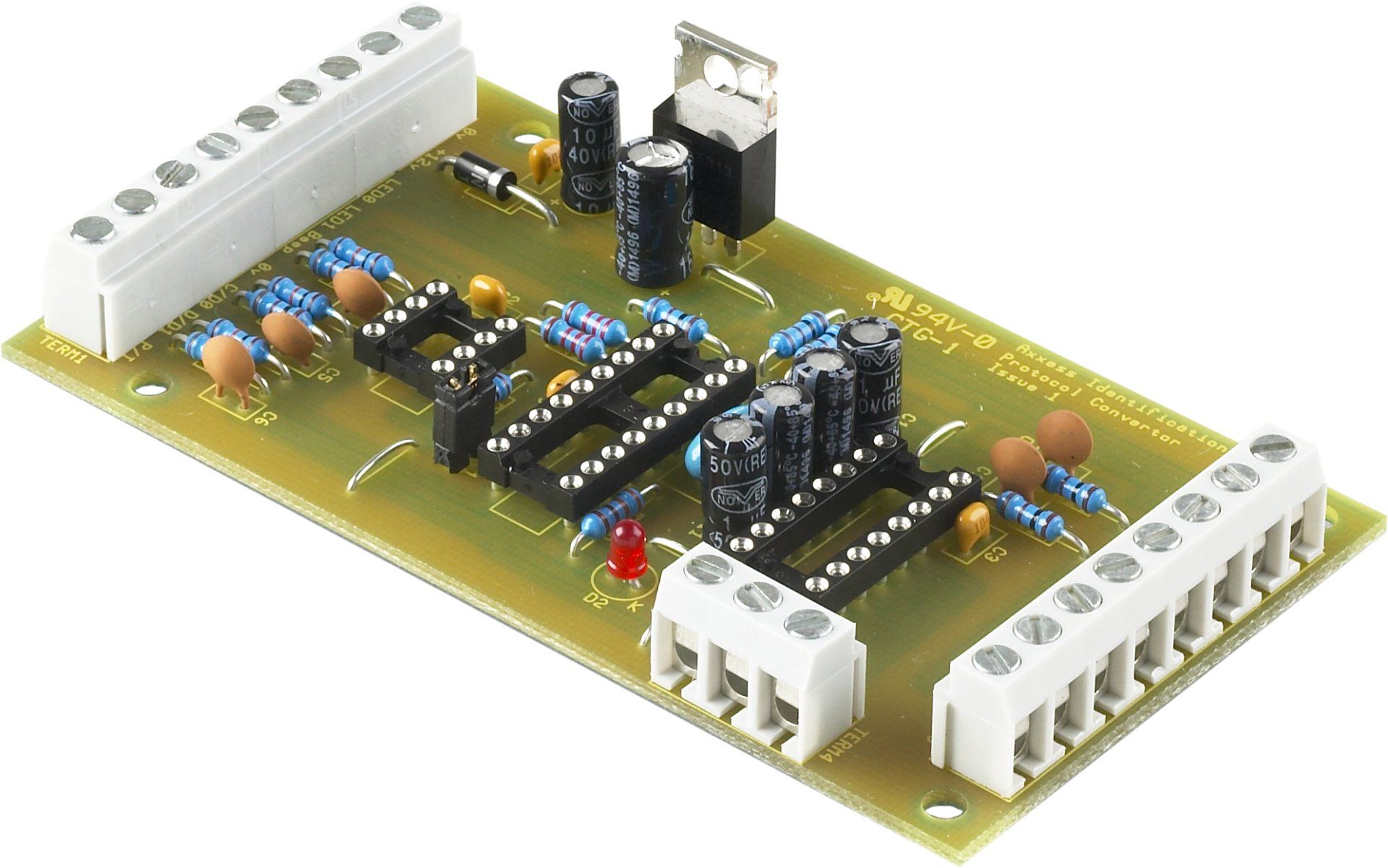

Each Protocol Converter Board is designed to take data from a card reader in one format, convert it to a different format, and then output to a controller unit.


Typical conversions include:

  • Track 2 Clock and Data input to Wiegand output or
  • Track 2 Clock and Data input to RS232 output or
  • Wiegand input type 1 to Wiegand output type 2
  • PC003 - Track 2 Clock and Data to RS232 Out
  • PC005 - RS232 In to Wiegand 26 bit Out
  • PC007 37 bit Wiegand to 36 bit (standard) Wiegand + 34 bit and 36 bit pass through
  • PC011 - Track 2 Clock and Data (Facility Code 10258) to 36 bit Standard Wiegand
  • PC017 Wiegand In to RS232 Out
  • PC018 - Magstripe to Wiegand 26 / 50 bit
  • PC021 - Track 1 Magstripe to Wiegand 50 bit
  • PC024 - Magstripe Track 2 to Wiegand 50 Bit
  • PC027 - Wiegand 26 bit to Magstripe
  • PC031 Reader Hitag 1 to RS232
  • PC034 - Track 1 Clock and Data to RS232 Out
  • PC035 - Magstripe (TDSi) to Bioscrypt 50 bit Wiegand
  • PC036 - RS232 to Wiegand 50 bit
  • PC046 - Wiegand 26 bit to Magstripe
  • PC050 - Magstripe Data to Wiegand 26 Bit
  • PC054 - ABA Track 2 to Wiegand 50
  • PC060 - RS232 In to Wiegand Out


Part No. 800-121-PCXXX

Where XXX signifies version number and type.

Protocol Converter Housing Part No. 105-601
