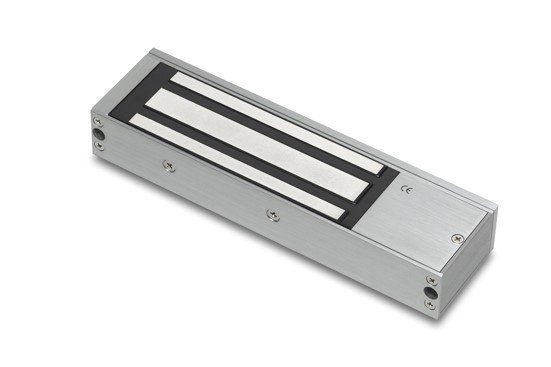

Standard Magnet Lock - Unmonitored

Standard Magnet Lock Features


Dual voltage 12v- 12vDC



  • Dual voltage 12v - 12vDC •Up to 554kg (1200lbs) holding force •Suitable for inward opening door using ophonal Z&L kit •Ejector button on armature for instant release •maintenance-free - no moving parts •Voltage: 12v •Current Draw: 12v DC 500mA •24vDC 250mA •Dimensions: Magnet - 26.5 x 6.6 x 4.1cm (10.4 x 2.6 x 1.6") •Armature - 18.5 x 6.1 x 1.6cm (7.3 x 2.4 x 0.63")

This standard electro-magnetic lock can be fitted to inward and outward swinging doors where head height is not a problem and greater holding force is required. This form of security can be used in most access control applications.


Part No. 308-122

Standard Z&L Bracket Part No. 308-117
